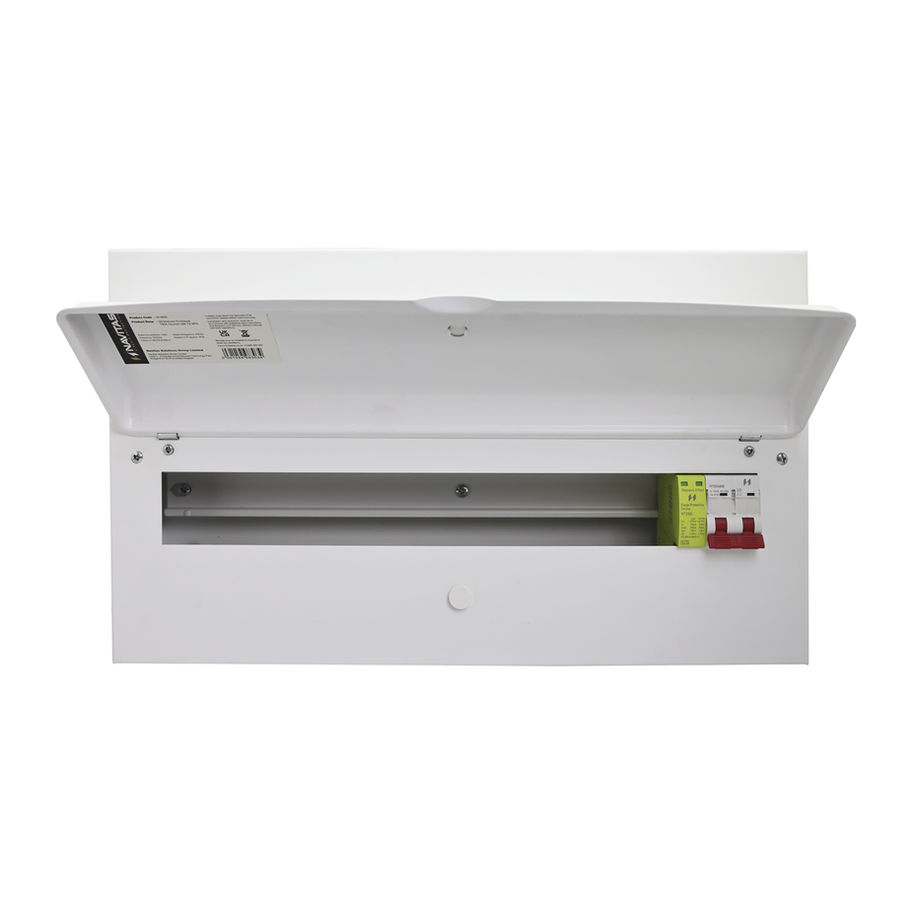

Navitas N19MX 19 Way Consumer Unit with Type 2 SPD
From
£96.65
Excluding VAT
|
Free Shipping over £200
The Navitas N19MX 19 Way Consumer Unit with Type 2+3 SPD combines advanced surge protection with installer flexibility and increased circuit capacity. Featuring the latest busbar adaptable Type 2+3 SPD system, the N19MX provides nineteen usable outgoing ways whilst allowing installers to choose between direct busbar connection or dedicated 32A MCB overcurrent protection. Supplied complete with the required line conductor for optional MCB installation, it is ideally suited to larger domestic, commercial and multi technology installations.
Quantity
Overview
The N19MX forms part of the latest generation Navitas MX consumer unit range, combining nineteen usable outgoing ways with the flexibility of the new Type 2+3 SPD system.
Unlike traditional surge protected consumer units where the SPD occupies outgoing ways, the busbar adaptable Navitas SPD can be connected directly to the busbar assembly, allowing the N19MX to provide nineteen usable outgoing ways as standard.
For installers who prefer dedicated local overcurrent protection, every N19MX is supplied complete with the required line conductor, allowing a 32A MCB to be added if required.
Manufactured from steel and finished in the distinctive Navitas textured white finish, the N19MX features a silver coated busbar, integrated locking mechanism and multiple cable entry points. Every board undergoes a 37 point quality control inspection before leaving the factory.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | N19MX |
| Usable Ways | 19 |
| Incomer | 100A DP Main Switch |
| SPD Type | Type 2+3 |
| SPD Installation | Busbar adaptable |
| Optional SPD OCP | 32A MCB using supplied line conductor |
| Mounting Type | Surface |
| Height | 265mm |
| Width | 464mm |
| Depth | 104mm |
| IP Rating | IP4X |
| Busbar Rating | 100A |
| Material | Steel |
| Finish | RAL 9010 Soft Matt |
| Lockable | Yes, requires NK-L |
| Frequency | 50Hz / 60Hz |
| Cable Entry | Top, side, bottom and rear knockouts |
| Cable Clamp | Cage clamp |
| Backing Plate Compatible | Yes (N22BP / N22FMK) |
| Warranty | 10 Years |
| Standards | BS EN 61439-1 & 3, BS EN 61643-11 |
Applications
The Navitas N19MX 19 Way Consumer Unit with Type 2+3 SPD is commonly specified where a large number of outgoing circuits are required within a single consumer unit. It is particularly suited to larger domestic properties, multi occupancy projects and installations incorporating multiple modern technologies.
Typical applications include:
• Large domestic installations
• High specification residential projects
• New build housing
• Property renovations
• Heat pump installations
• EV charger installations
• Solar PV installations
• Battery storage systems
• Smart home installations
• Commercial offices and business premises
Why Choose Navitas
Every Navitas consumer unit is designed with installers in mind. From the silver coated busbar and integrated locking mechanism through to the flexible Type 2+3 surge protection arrangement, every detail has been engineered to simplify installation whilst maintaining the highest standards of safety and reliability.
Unlike traditional surge protected consumer units, the latest MX range provides installers with the flexibility to utilise the SPD directly from the busbar or add dedicated local overcurrent protection using the supplied line conductor. This approach helps maximise usable outgoing ways whilst allowing the installation to be configured to suit individual project requirements.
Each consumer unit undergoes a 37 point quality control inspection and is manufactured to meet the requirements of BS EN 61439, providing electricians with confidence that every assembly will perform as intended when it matters most.
