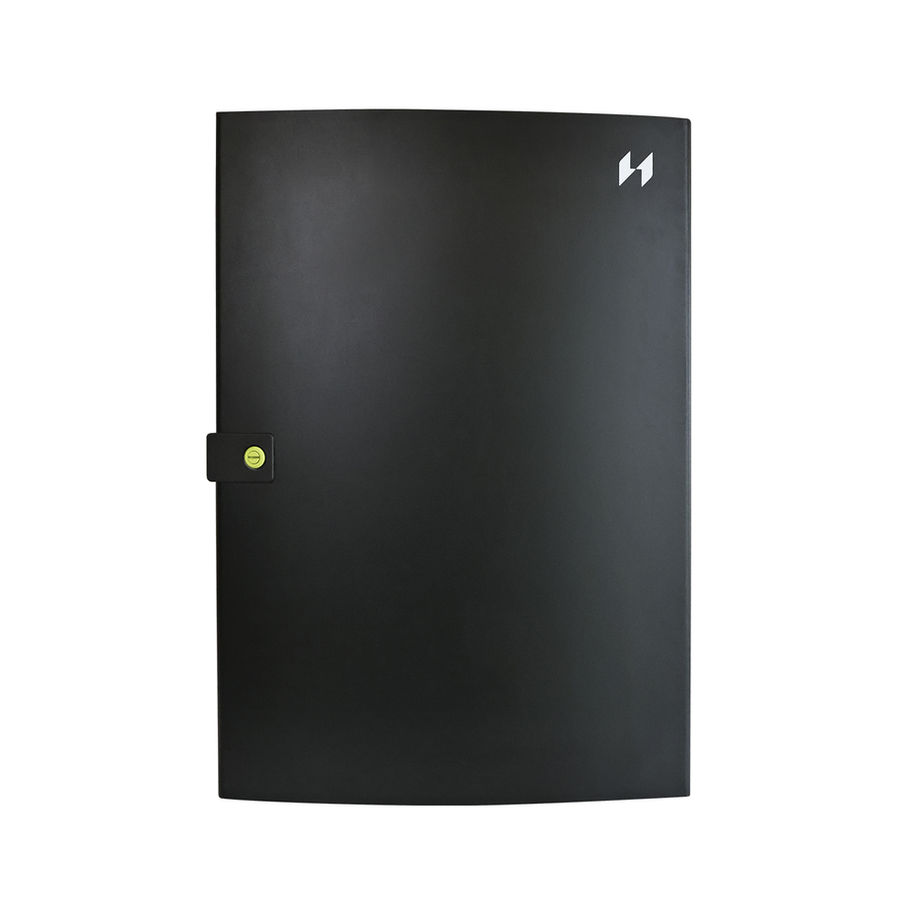

Navitas 8 Way 125A TPN Type B Board
From
£259.21
Excluding VAT
|
Free Shipping over £200

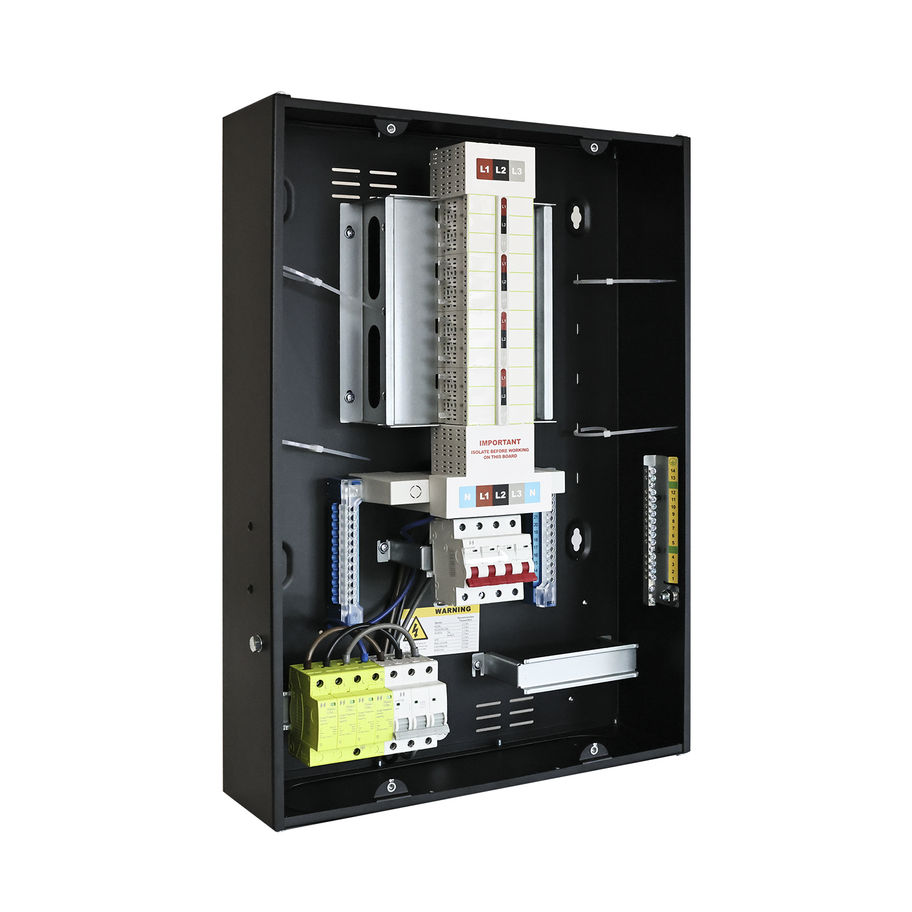

The Navitas NTP8 Series is a 125A three phase distribution board designed for commercial and industrial installations requiring eight TPN outgoing ways. Available with or without factory fitted Type 2 surge protection, every board is built on the same premium platform. The integrated SPD solution is pre fitted as standard, requiring no additional assembly on site, whilst its innovative design preserves all outgoing ways by mounting directly to the busbar assembly. For installers preferring dedicated overcurrent protection, the SPD can also be connected via a local protective device without sacrificing outgoing ways or requiring a different enclosure.
Quantity
Overview
The NTP8 Series has been developed for larger commercial and industrial installations where increased circuit capacity, installation flexibility and future expansion are essential. Combining a robust 125A four pole switch disconnector with generous internal working space, removable cable entry plates, integrated DIN rails and compatibility with the Navitas extension board system, every enclosure has been engineered to simplify installation whilst maintaining exceptional build quality.
Manufactured from heavy gauge steel and individually inspected through our comprehensive 37 point quality control process, the NTP8 Series delivers dependable performance, premium engineering and long term reliability, backed by a 10 year warranty.
Technical Specifications
| Specification | Details |
|---|---|
| Product Series | NTP8 |
| Outgoing Ways | 8 TPN |
| Total Modules | 32 (NTP8M) / 24 (NTP8MX) |
| Incomer | 4 Pole 125A Switch Disconnector |
| SPD | Optional Factory Fitted Type 2 (NTP8MX) |
| Busbar Rating | 125A |
| Rated Voltage | 230V |
| Frequency | 50Hz / 60Hz |
| Mounting | Surface |
| Integrated DIN Rails | 2 |
| Extension Board Compatible | Yes |
| Cable Entry | Top & Bottom Entry Plates |
| Lockable | Yes (Penny Lock) |
| IP Rating | IP30 |
| Material | Steel |
| Finish | Black |
| Height | 634 mm |
| Width | 450 mm |
| Depth | 161.5 mm |
| Weight | 14.2 kg (NTP8M) / 14.9 kg (NTP8MX) |
| Standards | BS EN 61439-3 & BS EN 7671 |
| Warranty | 10 Years |
Applications
The Navitas NTP8 Series is designed for larger commercial, industrial and infrastructure projects where greater three phase distribution capacity is required. Ideal for manufacturing facilities, commercial buildings, schools, healthcare environments, retail developments, agricultural installations and public sector projects, the NTP8 Series provides a flexible solution for demanding electrical installations.
Its generous cable management space, extension board compatibility and optional factory fitted Type 2 surge protection also make it an excellent choice for larger distribution board upgrades, plant rooms, mechanical and electrical services, and new build commercial developments where reliability, future expansion and ease of installation are critical.
Its combination of generous working space, premium construction and extension board compatibility also makes it an excellent choice for new installations, distribution board upgrades and projects where reliability and ease of installation are essential.
Why Navitas
Every enclosure in the Navitas NTP8 Series has been engineered with the installer in mind. From the generous internal working space and removable cable entry plates to the premium steel construction and extension board compatibility, every feature has been designed to simplify installation and deliver long term reliability.
Available with or without factory fitted Type 2 surge protection, every NTP8 board undergoes our comprehensive 37 point quality inspection before leaving the factory, providing the quality, reliability and confidence professionals expect from Navitas.
